KY-04 electronic lock controller

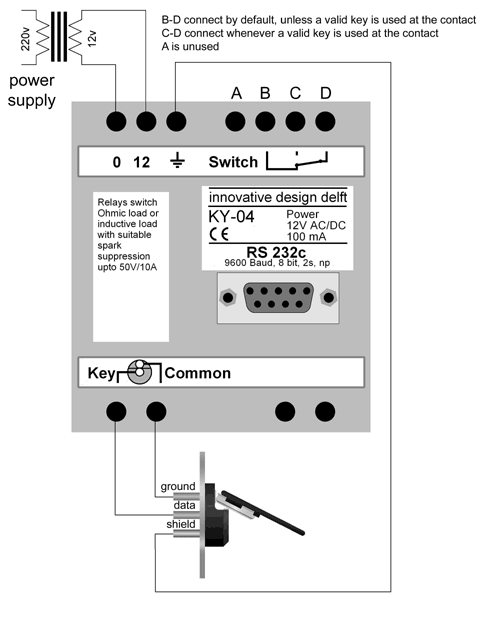

Wiring scheme for the KY-04s.

The KY-04 RS-232 specifications.
The KY-04d wiring scheme.
