The WM-Series Modules are used to provide a simple solution to register and forward calls
WM-00
Basic module
- 4 wire bus (Gnd, Power, Call, Reset)
- Master / Slave mode, selected with a simple slider switch

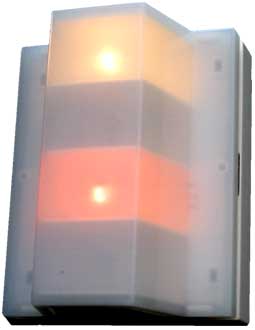

- White lamp indicating a call in the system
- Red lamp indicating a local call
- Buzzer with continuous selectable soundpressure level
Basic WM-00 module + relay
- Relay with 3 isolated contacts
- Jumper setting for letting the relay act on local or system call (default)
Wiring scheme of a typical wm-00 based system.
Main WM-00 unit. (130.1100/SP + 130.2900) (wiring scheme)
Set units (125.8600S and 125.8120S).
Reset unit (125.8130S).
Auxiliary output relays.
