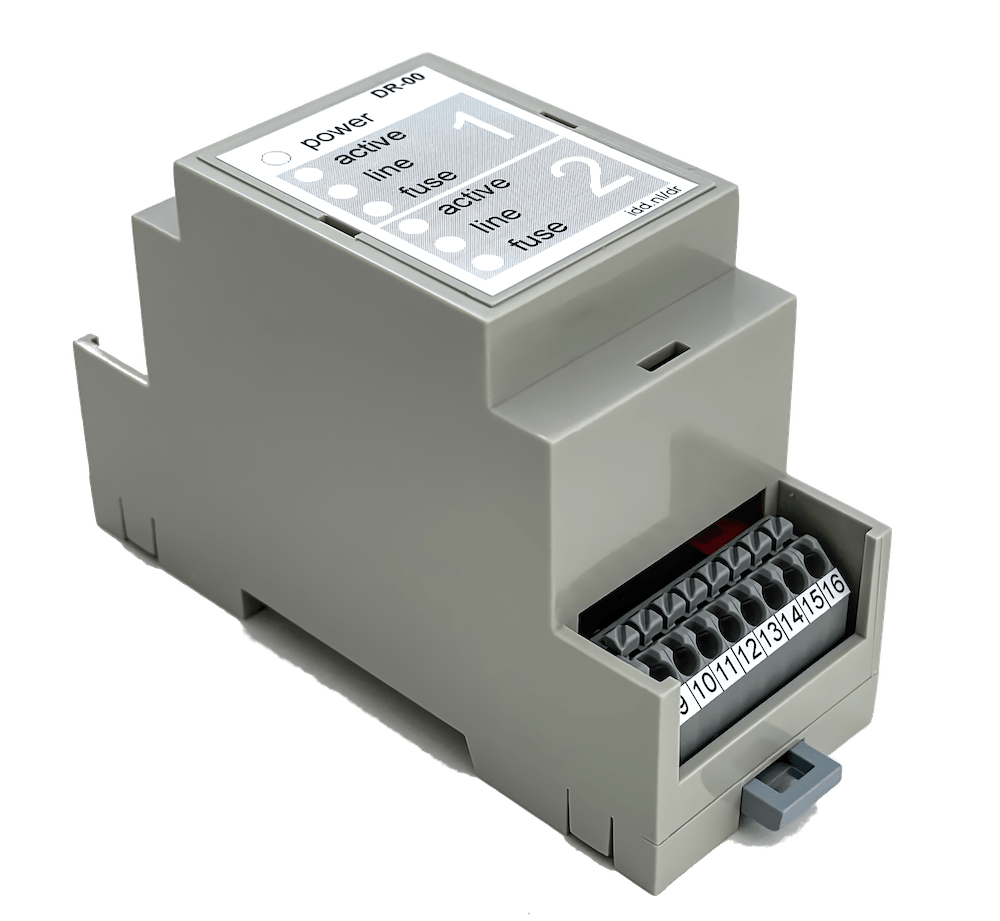

DR-00

The DR-Series Modules are used to provide a simple solution for monitoring a line, for example a slow whoop in a parking garage

DR-00

Basic module

• 24V DC operating voltage
• Two independent monitored channels
• Relay outputs capable of switching 1.5A load
• Active line monitoring (open or short) using polarity inversion (-12V)
• Overcurrent protection and fault monitoring
• Status indication with LEDs on front panel
• Isolated current loop Fault output (4mA idle, 2mA fault)
• Isolated SPDT relay Fault output

Application Notes

• Download the DR-00 manual sheet in PDF format.
